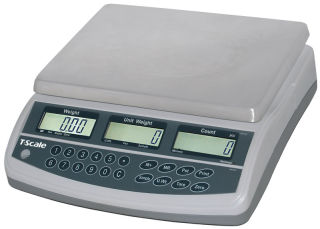

T-Scale QHC+ Counting Scales

The T-Scale QHC+ counting scale is a well-built, robust, accurate and easy to use rechargeable counting scale.

• Main Features

  • 20mm LCD Display
  • 60,000 divisions
  • Rechargeable Battery up to 90 hours of continuous use

• Specifications

  Capacities
  3kg to 30kg
  Display
  20mm LCD display white LED backlight
  Pan Size
  230mm x 300mm
  Keyboard
  20 keys (embossed membrane keyboard)
  Housing
  ABS plastic
  Max Division
  30,000/60,000d
  ADC
  Sigma Delta
  ADC update
  >1/10 Second
  Operating Temp
  -10℃~+40℃
  Power
  AC Adaptor (12V/500mA) Rechargeable Battery (6V/4Ah)

• Available Models

  Part Number	Capacities
  QHC+-3K	3 kg x 0.05 g
  QHC+-6K	6 kg x 0.1 g
  QHC+-15K	15 kg x 0.2 g
  QHC+-30K	30 kg x 0.5 g

• Documents

  QHC QHC+ Datasheet

  1 Mb
