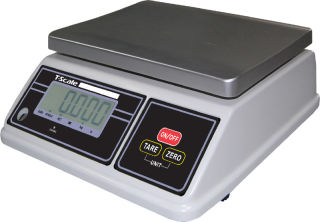

T-Scale SW-II-MR Bench Scales

A cost effective bench top scale perfect for general weighing applications.

New Zealand Trade Approved

• Main Features

  • New Zealand Trade Approved (TSS 2120)
  • 25mm LCD display, LED backlight
  • Dual range capacity
  • 12V AC adaptor / 6V internal rechargeable battery
  • Simple to operate 3 key keyboard
  • Pan Size: 200mm x 260mm

• Specifications

  Display
  25mm digit LCD display, with white LED backlight
  Capacities
  3Kg-30Kg
  Platform size
  200x260mm
  Keyboard
  3Keys (Mechanical switch)
  Housing
  ABS plastic
  Max. Divisions
  3,000e; 2×3,000e; 6,000d
  ADC update
  <=1/10 second
  Operate Temp
  -10ºC~+40ºC
  Power
  AC adapter (12V/500mA), internal rechargeable battery (6V/3.2Ah)

• Available Models

  Part Number	Capacities
  SW-II-MR-6K	3/6 kg x 1/2 g
  SW-II-MR-15K	6/15 kg x 2/5 g
  SW-II-MR-30K	15/30 kg x 5/10 g

• Documents

  SW II M Datasheet

  4 Mb

  TSS - 2120

  2 Mb
