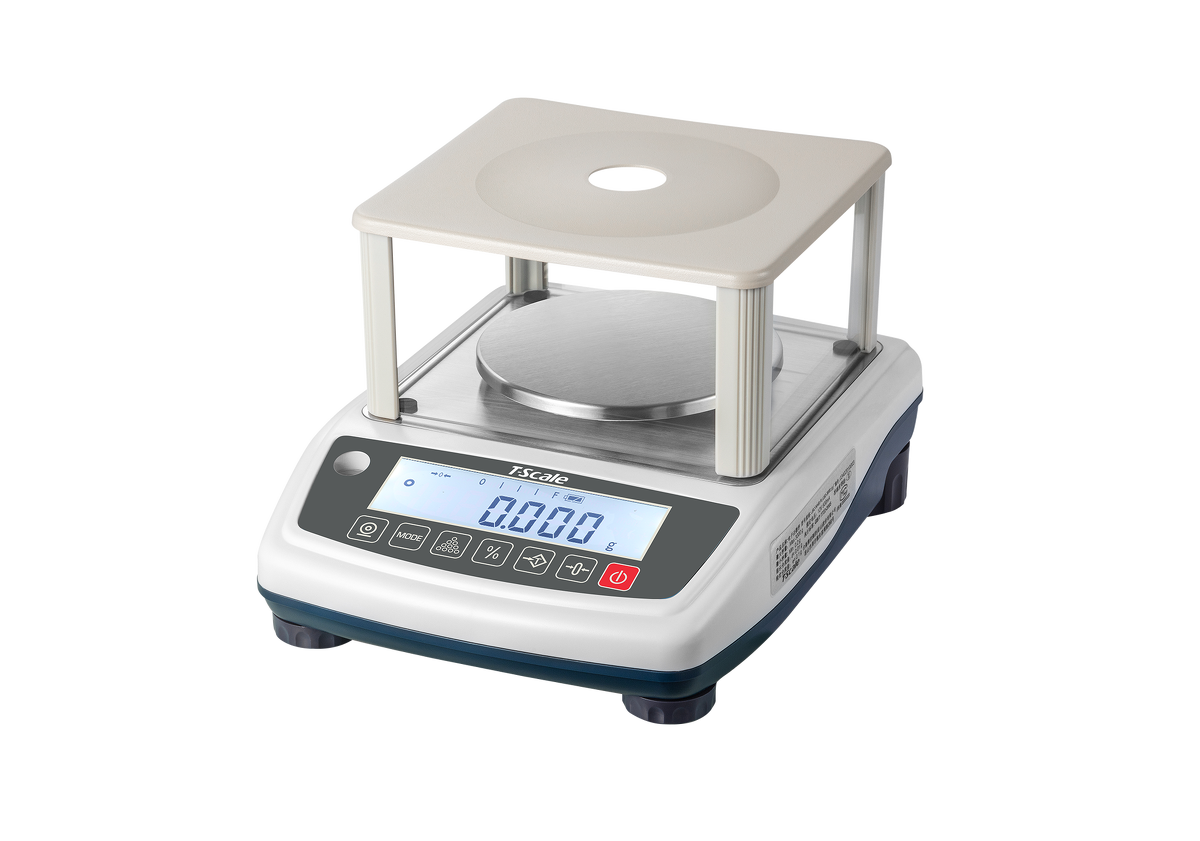

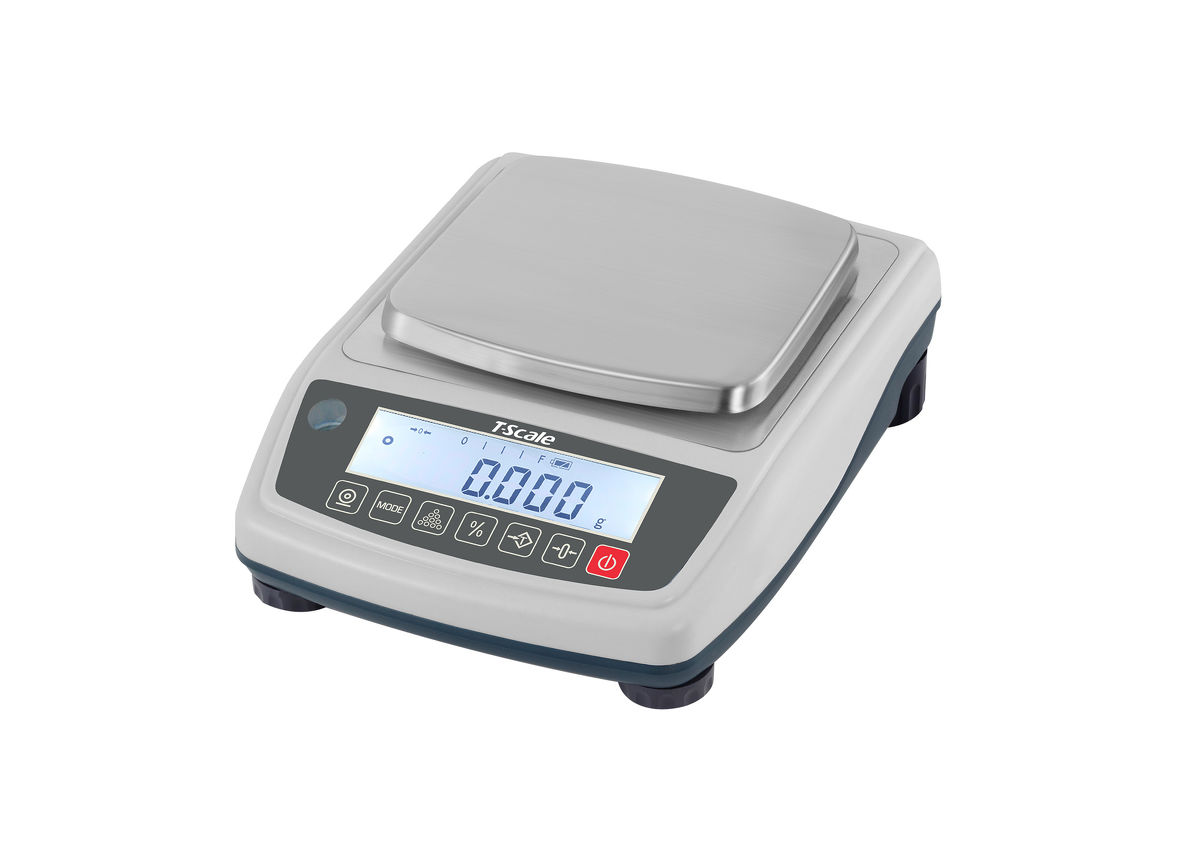

T-Scale NHB++ Top Pan Balance

The T-Scale NHB++ is a good value, low cost precision balance.

• Main Features

  • Standard RS232 interface
  • 200,000 division resolution
  • Rechargeable Battery up to 40 hours of continuous use

• Specifications

  Capacities
  200g/2000g
  Display
  16.5mm LCD display white LED backlight
  Pan Size
  80mm/120mm Diameter or 140mm x 150mm
  Keyboard
  7 keys (membrane keyboard)
  Housing
  ABS plastic
  Max Divisions
  6,000e/30,000d/60,000d/150,000d/200,000d
  ADC update
  >1/10 Second
  Operating Temp
  -10℃~+40℃
  Power
  AC Adaptor (12V/500mA) Rechargeable Battery (6V/1.2Ah)

• Functions

  • Percentage weighing
  • Counting
  • Accumulation
  • Weighing unit conversion

• Available Models

  Part Number	Capacities
  NHB++200g	200 g x 0.001 g
  NHB++2000g	2000 g x 0.01 g

• Documents

  NHB Datasheet

  2 Mb
