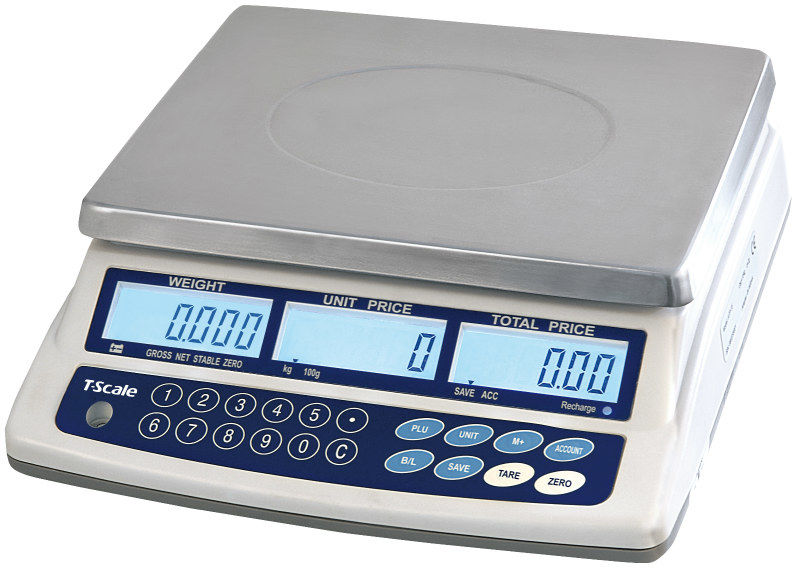

T-Scale ATP- MR

The T-Scale ATP is available in 3kg to 30kg capacities with dual range throughout the capacities.

New Zealand Trade Approved (1955.1)

• Main Features

  • Capacities from 3kg to 30kg
  • Applications: Weighing unit conversio/change/PLUs
  • Rechargeable Battery provide up to 70 hours of continuous use (without backlight)

• Specifications

  Display
  20mm digit LCD display, with white LED backlight
  Capacities
  3kg to 30kg
  Pan Size
  230 mm x 300 mm
  Keyboard
  20 keys (mechanical switch)
  Housing
  ABS plastic
  Max Divisions
  3,000e/2 x 3,000e/6,000d
  ADC Update
  <1/10 second
  Operating Temp
  -10℃~+40℃
  Power
  AC Adaptor (12V/500mA) Internal Rechargeable Battery (6V/4ah)

• Available Models

  Part Number	Capacities
  ATP-6K-MR	3/6 kg x 1/2 g
  ATP-15K-MR	6/15 kg x 2/5 g
  ATP-30K-MR	15/30 kg x 5/10 g

• Documents

  ATP Datasheet 920 (1)

  1 Mb

  TSS - 1955.1

  2 Mb
