iDimension Plus XL

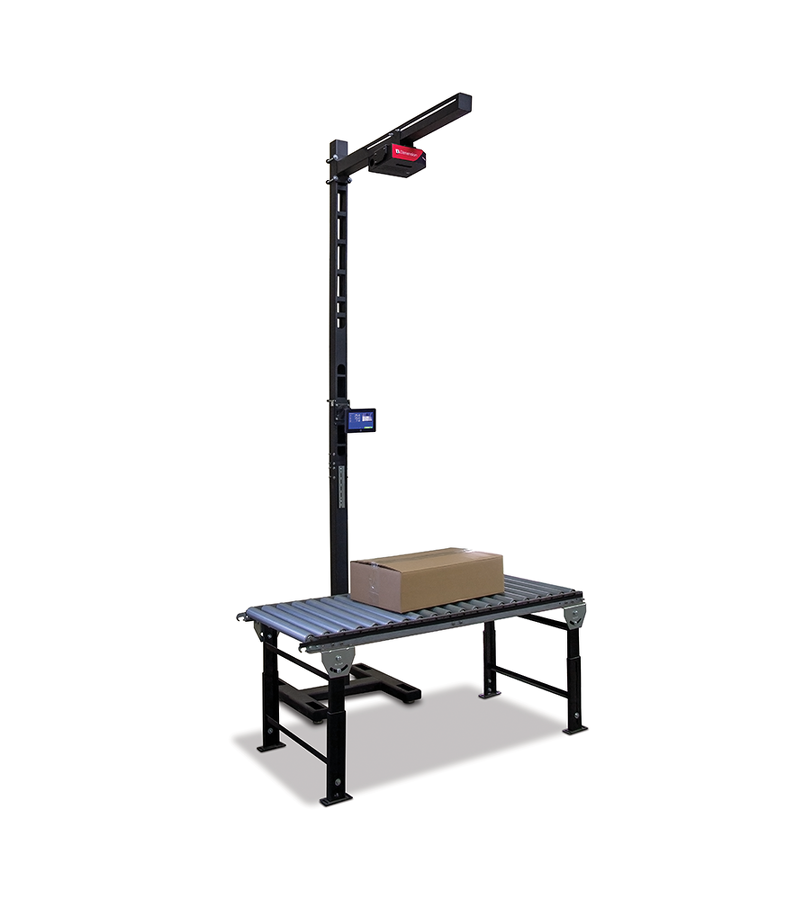

The iDimension® Plus XL is specifically designed for integrators to provide flexibility in the installation of a dimensioning solution anywhere over a conveyor, table or scale from a pole, ceiling mount or support beam. An optional stand is available for ease of integration over a static roller conveyor at 60.2 inches or 79 inches above the platform. The iDimension Plus XL can be used with UPS Worldship and a barcode scanner to add barcode data to process records.

Available on Indent Order

• Main Features

  • Easy to assemble in 30 minutes or less
  • Displays dimensions in less than 2 seconds
  • Automatic scan and dimension, no special package placement required

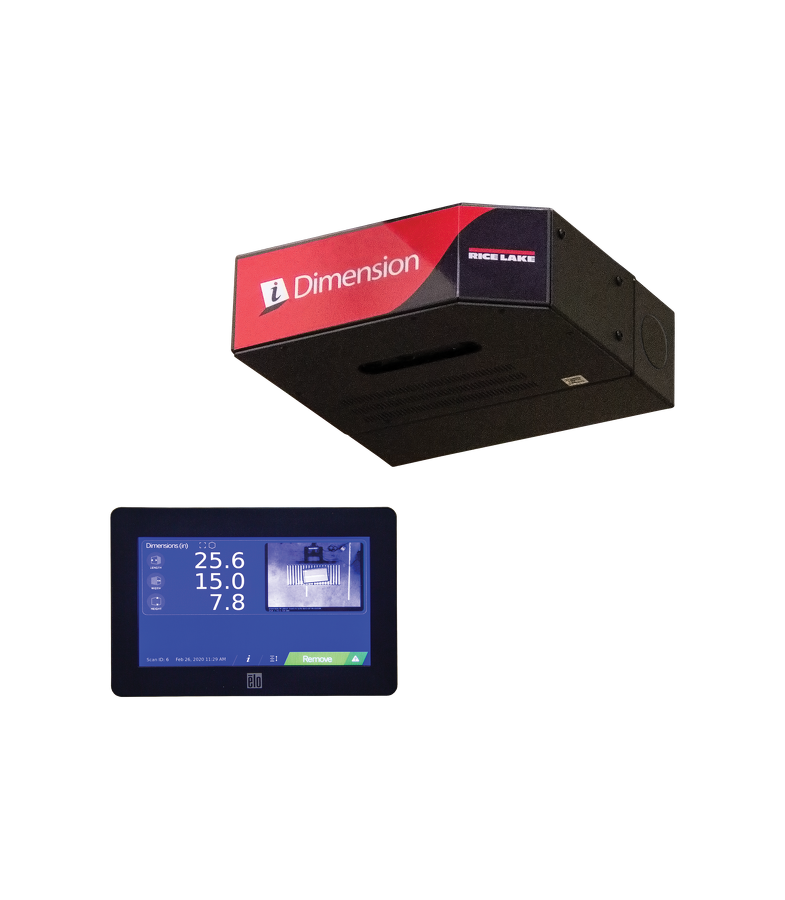

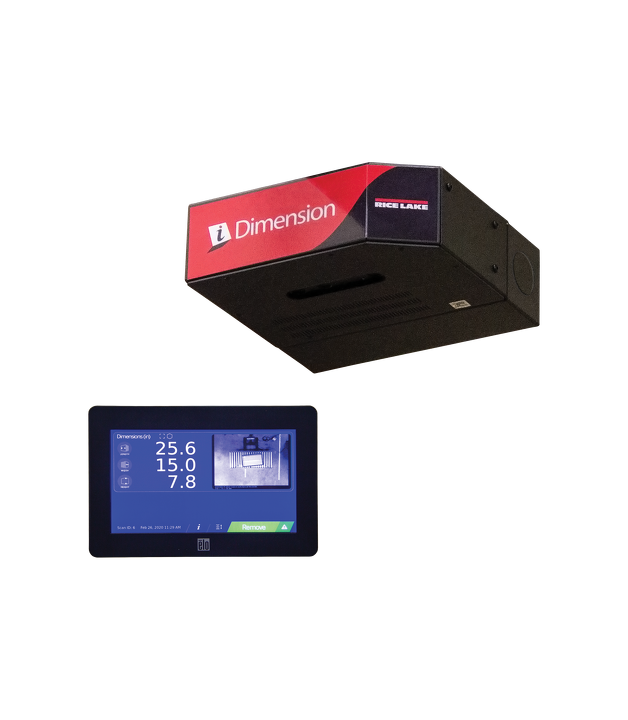

  • Includes 7 in (178 mm) touchscreen monitor
  • Dimensions parcels at NTEP 0.5 inch (10 mm) Legal for Trade accuracy
  • Dimensions irregular shapes and polybags at 0.5 inch NTEP Legal for Trade accuracy
  • Capable to dimension opaque packaging

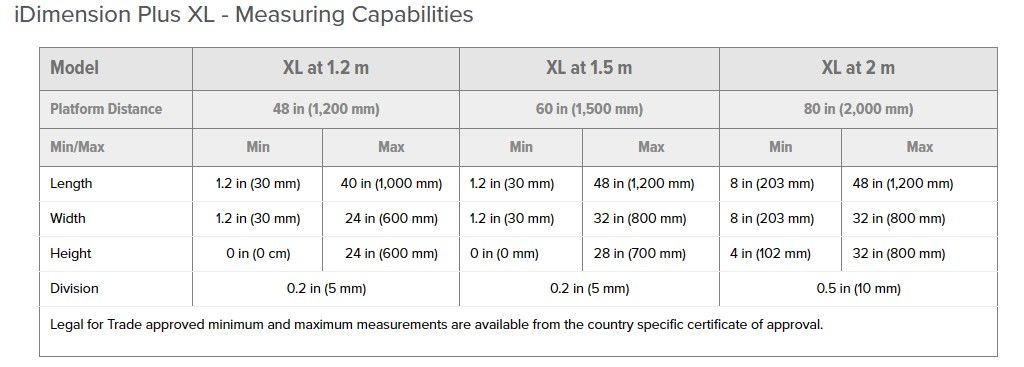

  • Measurement capabilities beyond Legal for Trade limits
  • Standard resolution color camera included
  • High resolution color image, 2,880 x 2,160 pixels, available from iDimension Plus 4K

• Specifications

  System Requirements:
  Windows® 10
  Power Requirements:
  Single power source 110 to 240 V external power supply, US power cord
  Communication Ports:
  (1) USB A/(1) 10/100/100 Base-T Ethernet
  Software Integration:
  API and SDK files available for network device integration/iDimension Desktop Wedge/iDimension Software Suite
  Package Contents:
  iDimension XL scanner head, calibration object, USB display and US power cord
  Operating Temperature:
  32 °F to 104 °F (0 °C to 40 °C)
  Humidity:
  Non-condensing
  Warranty:
  Two-year limited
  Approvals:
  NTEP 19-040A2/OIML R129/2000-A-NL1-20.05/CE Marked/MID Certified/NMI

• Options/Peripherals

  Options:

  • iDimension XL mounting hardware and cable assembly kit (includes sensor mounting bracket, 25 ft US power card and two 10 ft USB Type A extension cables)
  • RAM® mount kit for USB display
  • Floor mount stand assembly

  Peripherals:

  • Optional powered USB hub for use of more than one peripheral
  • Optional wired or wireless bar code scanner
  • Rice Lake BenchPro shipping/postal scales
  • Rice Lake 680, 880, 1280 indicators available for automation applications

• Video




  iDimension Video (1) from Jamie Bartlett on Vimeo.

• Available Models

  Part Number	Description
  204601	iDimension Plus XL OEM Kit with US Pwr, Display and Cal Object, OIML/MID/EU/NMI/NTEP
  204602	iDimension Plus XL 4K OEM Kit,US pwr cable,Display and Cal Object, OIML/MID/EU/NMI/NTEP
