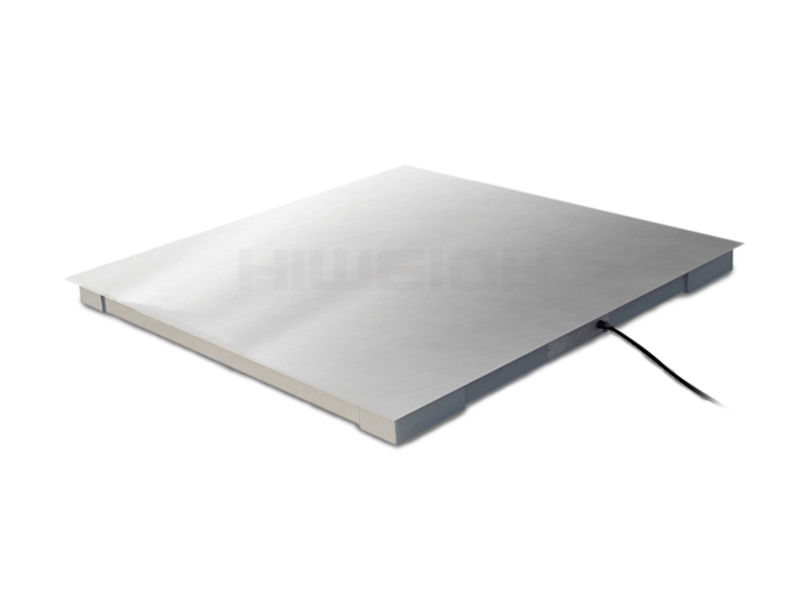

HIWEIGH FDS (CW)

Stainless Steel Continuous seam welded Platform Scale.

New Zealand Trade Approved

• Main Features

  • New Zealand Trade Approved
  • 3,000 capacity approved up to 1500mm x 1500mm, and 3,000 divisions
  • Capacities below 3,000kg must still have a 1kg division for trade use
  • Capacities below 3,000kg can have finer divisions for non trade use
  • 1200mm x 1200mm platform size stocked
  • Other platform sizes availbale by indent order
  • Custom build with continuous seam welding to eliminate food traps
  • Constructed from polished grade 304 stainless steel [smooth deck]
  • Stainless steel ball jointed foot assemblies
  • Top access stainless steel load cell junction box
  • Ideal for use in wet areas and food processing industries

• Specifications

  Material
  SUS304 Stainless Steel
  Capacity
  Up to 3000kg
  Load Cell
  4 x Zemic B8D Stainless steel shear beam load cells
  Loadcell Protection
  IP67
  Platform Size
  1200 x 1200 mm

• Available Models

  Part Number	Dimension	Capacities
  FDSCW1212	1200mm x 1200mm	Maximum - 3000kg

  Options	Dimensions
  FDS Ramp	800mm x 1200mm

• Documents

  FDS HIWEIGH 2012

  144 Kb

  TSS - 1979

  2 Mb
