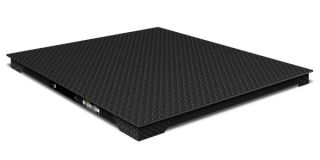

Hiweigh FD Floor Scales

Rugged platform with 5mm checked plate. Plastic powder coated finish, black color - Standard capacity up to 3000kg.

• Main Features

  • New Zealand Trade Approved
  • 3,000 capacity approved up to 1500mm x 1500mm, and 3,000 divisions
  • Capacities below 3,000kg must still have a 1kg division for trade use
  • Capacities below 3,000kg can have finer divisions for non trade use
  • 1200mm x 1200mm and 1200mm x 1500mm platform sizes stocked
  • Other platform sizes available by indent order
  • Black plastic powder coated mild steel with chequer plate deck
  • Stainless steel ball jointed foot assemblies
  • Top access 4 - way load cell junction box

• Specifications

  Material
  Mild Steel
  Capacity
  Up to 3000kg
  Load Cell
  4 x Zemic H8C shear beam load cells
  Platform Sizes
  1200 x 1200 mm
  1200 x 1500 mm
  1200 x 1800mm (indent order)
  1500 x 1500 mm
  Custom Sizes also available

• Available Models

  Part Number	Dimensions
  FD1212	1200mm x 1200mm
  FD1215	1200mm x 1500mm
  FD1218	1200mm x 1800mm
  FD1515	1500mm x 1500mm

  Options	Dimensions
  FD Ramp	840mm x 1200mm

• Documents

  FD HIWEIGH 2012

  183 Kb

  TSS - 1979

  2 Mb
