Dini Argeo DTW

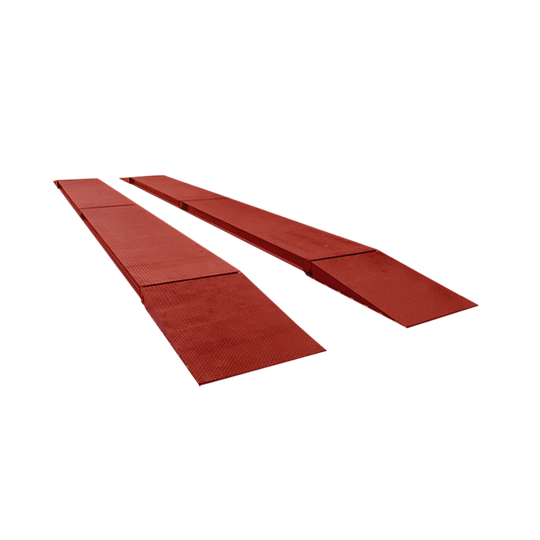

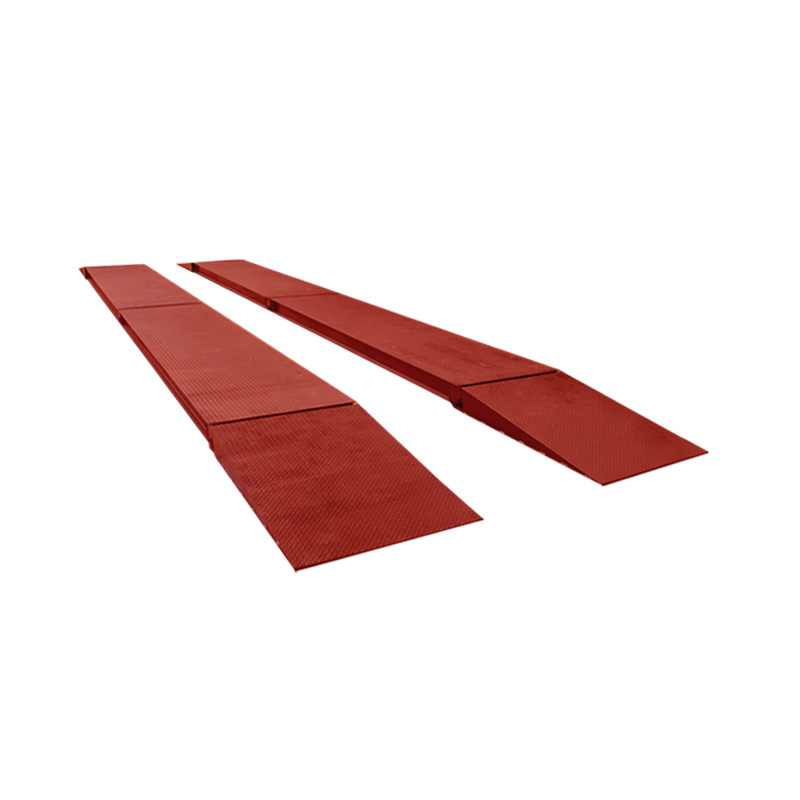

Innovative vehicle weighing dual track weighbridge, easily transportable and installable thanks to the reduced height and weight.

Designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weighbridges currently available on the market.

New Zealand Trade Approved (2317).

Multiple capacities and sizes available,  Please enquire for more information.

• Main Features

  • Precise and versatile platforms, suitable for all kinds of applications
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
  • Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates.
  • Load cells protected from dust and water.
  • Dust and waterproof wirings and connections, easy to connect and disconnect.
  • Modularity: by adding or removing pairs of modules, the weighbridges can have these lengths: 4,5 m - 9 m - 13,5 m - 18 m - 22,5 (up to 36m by price estimate).
  • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weighbridge also without an electrical power supply.
  • 30m long connection cable between DTW and indicators

• Documents

  DTW Brochure

  774 Kb

  TSS - 2317

  2 Mb
