880 Series

Designed with the user process in mind and built for communication, Rice Lake’s Performance™ Series weight indicators/controllers are packed with power, yet simple in design.

Intuitive multifunction menu keys allow navigation in any application and the NEMA Type 4X/IP69K-rated gasket effectively keeps internal components out of harm’s way. Twenty time- and weight-based setpoints provide ultra responsiveness to handle any process control requirement. For customized operation, use Rice Lake's intuitive iRite software to program functionality specific to the application.

The innovative 880 and 880 Plus also accommodate a wide range of connectivity—from USB and RS-232/ RS-485 to Ethernet TCP/IP.

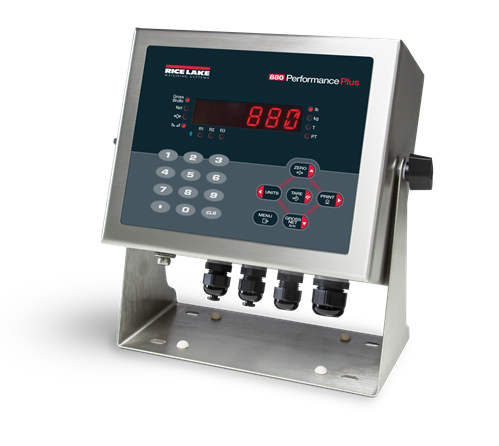

Install an option card for additional fieldbus compatibility, analog output, relay board, dual serial outputs or 24-channel digital inputs/outputs. With two different enclosure types to choose from, Rice Lake’s 880 Performance Series exceeds your expectations wherever you need it.

• Main Features

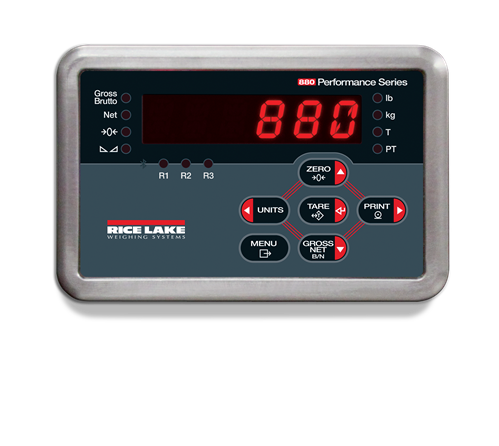

  • LED display
  • USB device port connects directly to a PC
  • Ethernet TCP/IP polled or continuous polled or continuous, server/client

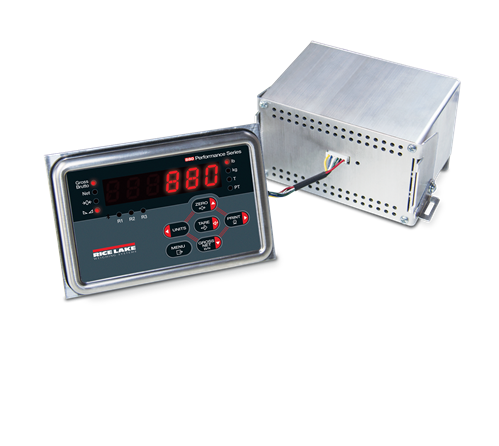

  • Built-in DIN-rail clips on controller box (panel mount)
  • Display and controller can be separated up to 250 ft (panel mount)
  • Hardware slot for one option card
  • Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
  • Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
  • 20 setpoints with latched batch engine or unlatched outputs
  • Four onboard digital I/O channels
  • Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
  • Five-point linearization calibration
  • Local/remote operation
  • Multi-range or multi-interval weighing
  • Filter settings for light, medium and heavy noise

• Specifications

  Power:
  Line voltages: 100 to 240 VAC
  Frequency: 50 to 60 Hz
  DC voltages: 12 to 24 VDC
  Power consumption:
  AC: 15 W, DC: 20 W
  Excitation Voltage:
  10 VDC (+/- 5 VDC), 16 × 350 ohm or 32 × 700 ohm load cells
  Analog Signal Input Range:
  -45 mV to 45 mV
  Analog Signal Sensitivity:
  0.3 μV/graduation minimum at 7.5 Hz;
  1.0 μV/graduation recommended
  A/D Sample Rate:
  7.5 to 960 Hz, software selectable
  Resolution:
  Internal: 8,000,000 counts
  Display: 999,999
  System Linearity:
  ± 0.01% full scale
  Digital I/O:
  Four I/O onboard, primary keys, pseudo
  functions, batching functions
  Communication Ports:
  RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP
  Annunciators:
  Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3
  Display:
  LED, 0.56 in (14 mm), six-digit, 14-segment with decimal or comma
  Keys/Buttons:
  Membrane panel, tactile feel
  Dimensions:
  (L × W × H)
  Panel: 6.00 × 4.95 × 4.00 in (152 × 126 × 102 mm)
  Universal: 9.87 × 4.00 × 9.38 in (248 × 102 × 235 mm)
  Temperature Range:
  Certified: 14 °F to 104 °F (-10 °C to 40 °C)
  Operating: 14 °F to 122 °F (-10 °C to 50 °C)
  Rating/Material:
  Panel display: stainless steel, NEMA Type 4X, Type 12 and IP69K
  Panel mount controller: Aluminum
  Universal: stainless steel, IP69K
  Weight:
  Panel: 2.5 lb (1.2 kg);
  Universal: 6.5 lb (2.9 kg)
  Warranty:
  Two-year limited
  EMC Immunity:
  10 V/m

• Approvals

  • NTEP CC 13-080 Class III/IIIL, 10,000d
  • Measurement Canada AM-5931C
  • OIML R76/2006-A-NL1-18.23 Class III, 10,000d
  • EU Test Certificate TC8463
  • UL/cUL Listed (universal)
  • UL/cUL Recognized (panel mount)
  • CE Marked
  • NAWI Certified
