682 Synergy Series

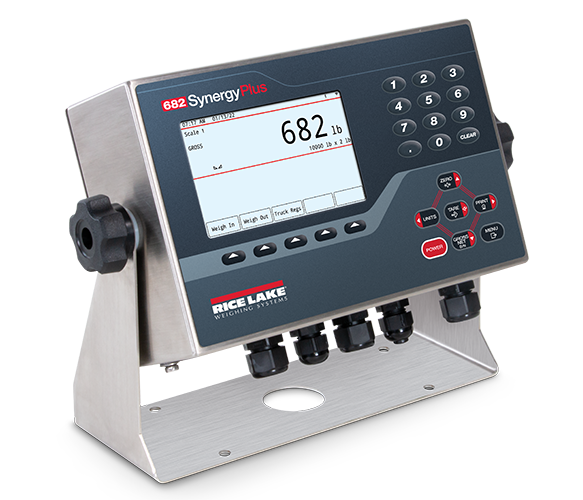

The durable 682 Synergy Series indicator is constructed with 304 stainless steel and has an IP69 ingress rating to stand up to high-pressure, high temperature washdowns found in food processing and other environments.
The 682 indicator has a bright five-inch color LCD screen and configurable softkeys for an interface that is easy to use.

The 682 indicator comes standard with advanced communications to take on a wide range of applications. Connections to external devices and networks are available through RS-232 and RS-485 serial ports, USB, Ethernet, fieldbus, Wi-Fi and Bluetooth®. This digital weight indicator also has a built-in web server for easy remote monitoring and process control.

The 682 indicator has an integrated truck in/out mode specifically designed for vehicle scale applications. This mode stores the transaction after each weigh-out with truck ID, gross, tare and net weights. Transactions may be printed or cleared at any time.

• Main Features

  • Graphical, LCD color display with configurable softkeys
  • Numeric, tactile keypad for scale operations, numeric entry and navigation
  • Multi-language operation and text entry
  • Formattable tickets
  • Battery backed time and date
  • Multiple communication ports
  • Eight setpoints, 22 configurable types
  • Fieldbus communication using Rice Lake’s SCT-2200 modules and RS-485 port
  • Built-in web server for remote access, systems integration and data monitoring
  • Built-in Truck In/Out application
  • Four onboard configurable digital I/O points, TTL logic
  • Local/remote
  • Multi-range/interval

• Specifications

  Power:
  Line voltage: 100 to 240 VAC, 50/60Hz,Optional: 9 to 23 VDC
  Power Consumption:
  3.2W (AC) 1 × 350 ohm load cell, 15W max;4W 4 × 350 ohm load cells or 8 × 700 ohm load cells
  Excitation Voltage:
  10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells
  Analog Signal Input Range:
  -5 mV to +70 mV
  Analog Signal Sensitivity:
  0.3 μV/graduation minimum,1 μV/graduation recommended
  A/D Sample Rate:
  6.25 to 120 Hz, software selectable
  Resolution: Internal:
  8,000,000 counts, Display: 1,000,000
  System Linearity:
  Within 0.01% full scale
  Digital I/O:
  Four configurable I/O, 5V logic
  Communication Ports:
  Two RS-232 (three-wire),RS-485/422 (two-wire or four-wire),Micro USB (device),Ethernet TCP/IP (10/100),Wi-Fi, Bluetooth®
  Annunciators:
  Zero, Gross/Net, Tare, Wi-Fi, Bluetooth®
  Display:
  Five-inch LCD, 800 × 480 pixel, 500 NIT
  Keys/Buttons :
  Flat membrane panel, tactile feel,18 buttons plus 5 softkeys and power

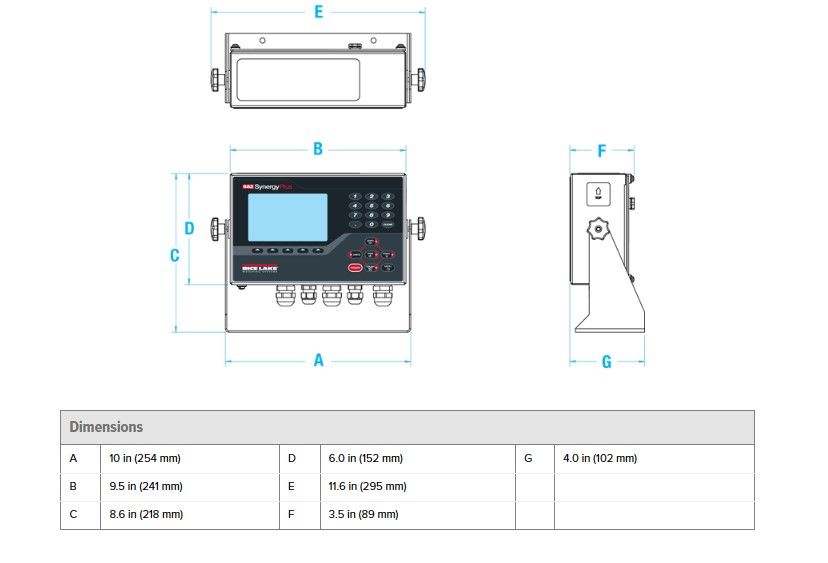

  Dimensions:
  (L x W x H)10.0 x 4.0 x 8.6 in(254 x 102 x 218 mm)
  Temperature Range:
  Certified: 14 °F to 104 °F (-10 °C to 40 °C)/Industrial: 14 °F to 122 °F (-10 °C to 50 °C)
  Rating/Material:
  IP69K (IP66 with RJ45 option)/AISI 304 Stainless Steel
  Weight:
  6.25 lb (2.84 kg)
  Warranty:
  Two-year limited
  Approvals:
  NTEP CC 19-021, Class III/IIIL, 10,000d/Measurement Canada AM-6121C/OIML R76 2006 A NL1 19.56R3/EU Test Certificate TC11562/cULus/CE Marked/UKCA

• Options

  • Analog output: 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
  • Relay card
  • Dual serial card
  • RJ45 Ethernet connector

• Available Models

  Part Number	Description
  207349	Indicator,682 Plus Universal LCD Display, 115-230VAC Power Supply, AUS Power Cord
  193157	Indicator,682 Plus Universal LCD Display, 9-36VDC Power Supply
  207357	Indicator,682 Plus Universal LCD Display, 115-230VAC Power Supply, AUS Power Cord w/ RJ45 Option
